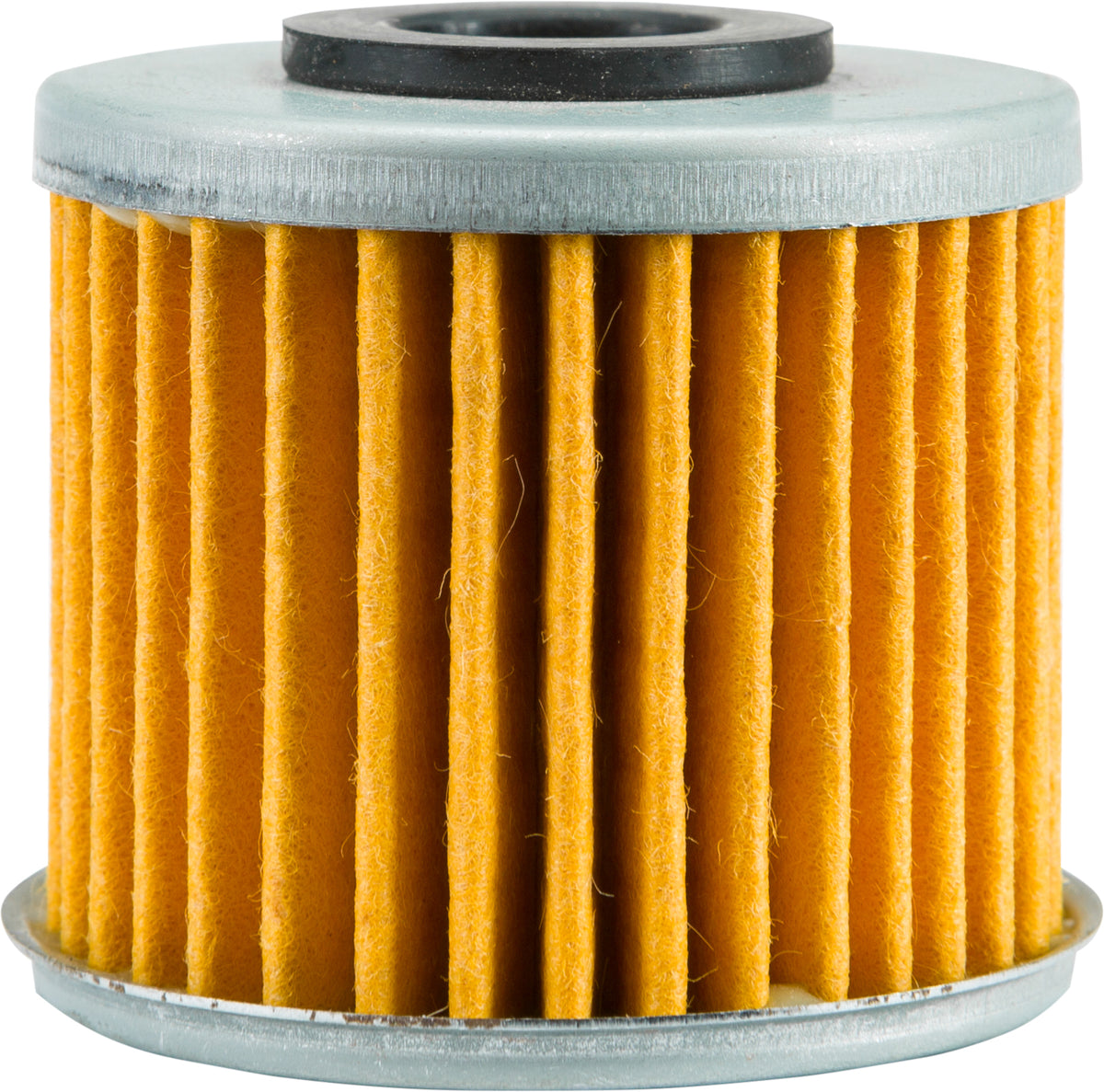

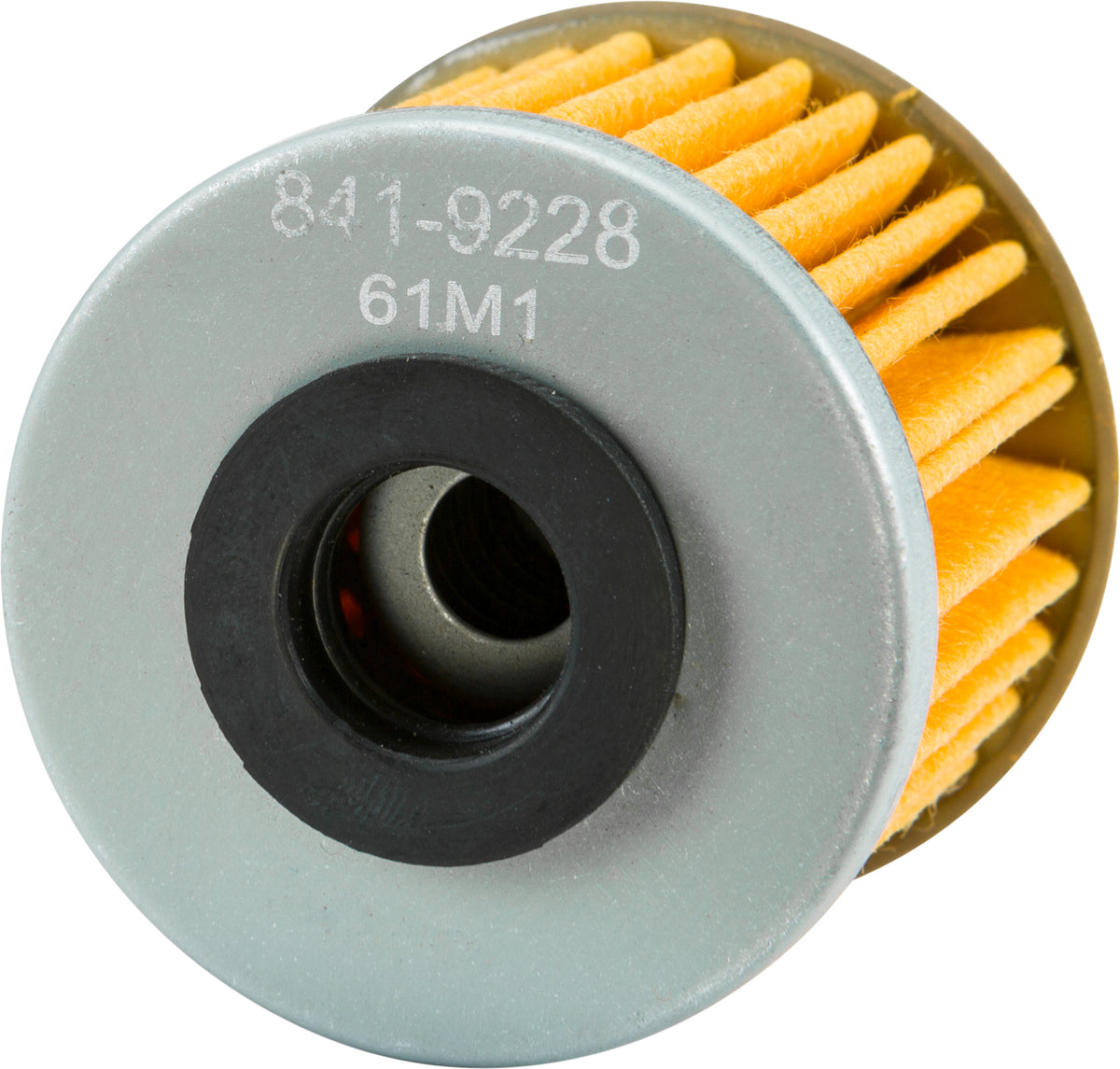

FIRE POWER PS117 Oil Filter for ATV/UTV Engines - Standard and Performance Versions

The FIRE POWER PS117 oil filter is designed for optimal filtration performance in ATV and UTV engines, specifically fitting models such as Honda NC700X, NC700J, NM4, and Pioneer 1000 series. This filter features a zigzag pleating pattern that provides increased filtration area, allowing it to hold more dust and contaminants while maintaining a lower pressure drop for improved engine flow and efficiency. The media is resin-impregnated to ensure structural integrity under varying pressure and temperature conditions, making it reliable during extended operation.
Standard version features include media enhancement by M-Pleating, which boosts dust holding capacity and reduces pressure loss. It also has a tapped thread for easy installation and a pre-lubricated gasket to facilitate a secure and smooth fit. The base plate is protected with shrink film to keep the lube fresh and dust-free until installation. For users seeking higher durability, the performance version adds a heat-resistant anti-drainback valve made from silicone rubber, preventing dry starts and extending filter life. Additionally, the filter includes a 17mm hex nut for easy removal and service, with safety wire attachment capability for enhanced security.
The FIRE POWER PS117 oil filter boasts a clean, decal-free exterior, providing a sleek appearance and hassle-free maintenance. Its compact design makes it suitable for a variety of Honda ATV and UTV models from 2012 through 2016. Whether for routine oil changes or extended use in demanding conditions, this filter offers reliable filtration and easy service access, ensuring your engine stays protected and performs optimally over time.

Features:

• Standard version features include enhanced media for increased dust capacity and reduced pressure drop

• Zigzag pleating pattern provides more filtration area for better dust holding capacity

• Resin-impregnated media ensures structural integrity under pressure and temperature spikes

• Forming tapped thread allows easy installation and spin-on design

• Pre-lubricated gasket facilitates smooth installation and removal

• Base plate is covered with shrink film to preserve lubrication and prevent dust contamination

• Performance version adds heat-resistant anti-drainback valve (ADBV) made from silicone rubber

• Anti-drainback valve prevents dry starts and offers extended durability

• Includes a 17mm hex nut for easy service and removal, with safety wire attachment option

• Decal-free design provides a clean, professional appearance

Product Type: Oil Filters
Segment: ATV/UTV
Division: Engine
Class: Oil Filters & Components
Sub Class: Oil Filters

FITMENT:
2012 Honda NC700X
2012 Honda NC700XD
2013 Honda NC700X
2013 Honda NC700XD
2014 Honda NC700X
2014 Honda NC700XD
2015 Honda NC700J NM4
2015 Honda NC700X
2015 Honda NC700XD
2016 Honda CRF1000L Africa Twin
2016 Honda CRF1000LD Africa Twin DCT
2016 Honda NC700J NM4
2016 Honda NC700X
2016 Honda NC700XD
2016 Honda SXS10M3 Pioneer 1000
2016 Honda SXS10M5P Pioneer 1000-5
2017 Honda CRF1000L Africa Twin
2017 Honda CRF1000LD Africa Twin DCT
2017 Honda SXS10M3 Pioneer 1000
2017 Honda SXS10M3L Pioneer 1000 LE
2017 Honda SXS10M3P Pioneer 1000 EPS
2017 Honda SXS10M5D Pioneer 1000-5 Deluxe
2017 Honda SXS10M5L Pioneer 1000-5 LE
2017 Honda SXS10M5P Pioneer 1000-5
2018 Honda CRF1000L Africa Twin
2018 Honda CRF1000L2 Africa Twin Adventure Sports
2018 Honda CRF1000L2D Africa Twin Adventure Sports DCT
2018 Honda CRF1000LD Africa Twin DCT
2018 Honda GL1800 Gold Wing
2018 Honda GL1800D Gold Wing Tour Automatic DCT
2018 Honda GL1800DA Gold Wing Tour Airbag Automatic DCT
2018 Honda SXS10M3 Pioneer 1000
2018 Honda SXS10M3L Pioneer 1000 LE
2018 Honda SXS10M3P Pioneer 1000 EPS
2018 Honda SXS10M5D Pioneer 1000-5 Deluxe
2018 Honda SXS10M5L Pioneer 1000-5 LE
2018 Honda SXS10M5P Pioneer 1000-5
2019 Honda CRF1000L Africa Twin
2019 Honda CRF1000L2 Africa Twin Adventure Sports
2019 Honda CRF1000L2D Africa Twin Adventure Sports DCT
2019 Honda CRF1000LD Africa Twin DCT
2019 Honda GL1800 Gold Wing
2019 Honda GL1800D Gold Wing Tour Automatic DCT
2019 Honda GL1800DA Gold Wing Tour Airbag Automatic DCT
