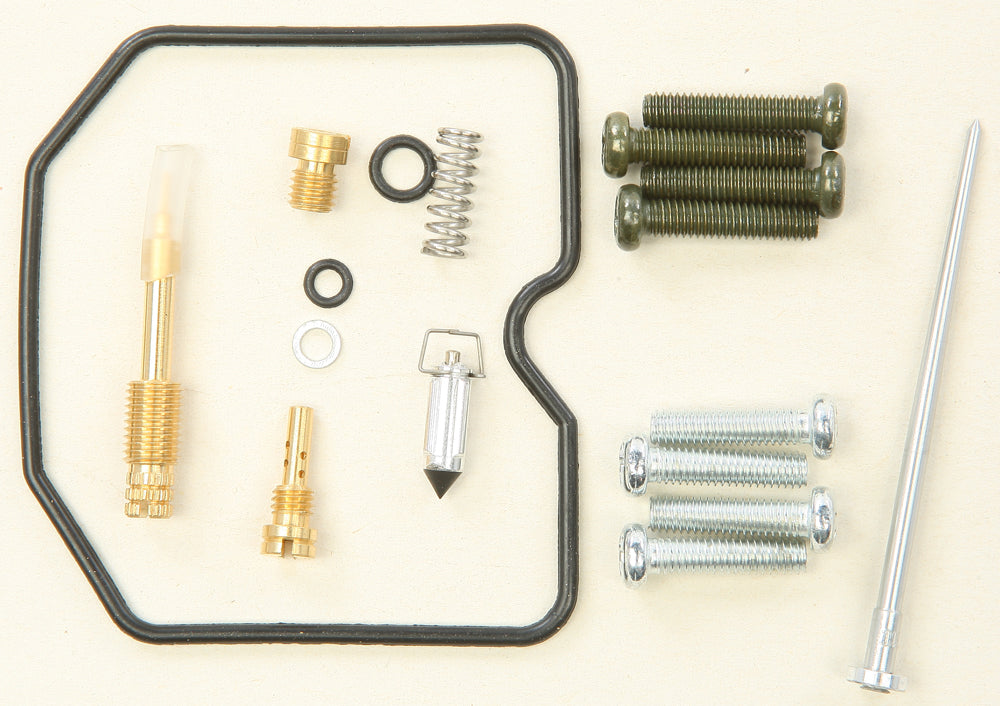

226-1417

Features:

• Kits are intended for closed course racing only


• NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today’s fuels


• Components included in the kits are based off of US models and discretion must be used when attempting to install the kit on a non US model


• All gaskets and O-rings including intake gaskets before and after the carburetor


• Float bowl, carburetor cap, and accelerator pump screws


• Extended fuel mixture screw with spring, washer, and O-ring


• Float needle valve with FMK tip


• Accelerator pump diaphragm spring and boot


• Emulsion tube with slide needle


• 3 main jets and 3 pilot jets that can be used to tune a stock machine or a modified one

Product Type: Intake/Carb/Fuel System
Segment: Offroad
Division: Intake
Class: Carburetor & Components
Sub Class: Carb Kits

FITMENT:
1987 Kawasaki KLR250
1988 Kawasaki KLR250
1989 Kawasaki KLR250
1990 Kawasaki KLR250
1991 Kawasaki KLR250
1992 Kawasaki KLR250
1993 Kawasaki KLR250
1994 Kawasaki KLR250
1995 Kawasaki KLR250
1996 Kawasaki KLR250
1997 Kawasaki KLR250
1998 Kawasaki KLR250
1999 Kawasaki KLR250
2000 Kawasaki KLR250
2001 Kawasaki KLR250
2002 Kawasaki KLR250
2003 Kawasaki KLR250
2004 Kawasaki KLR250
2005 Kawasaki KLR250
